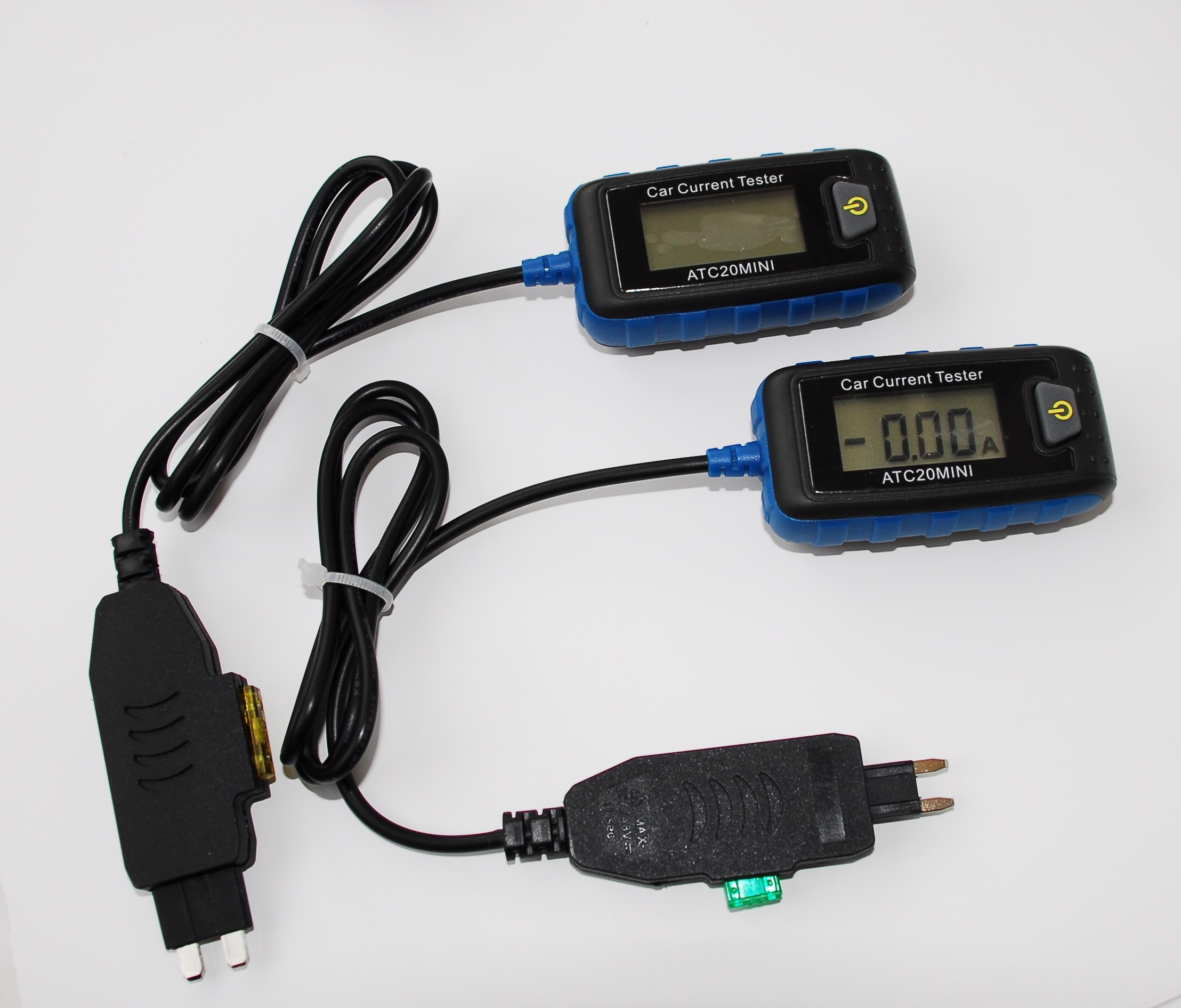

Automotive Current Tester 20A/30A

• Fast, accurate and safe current measurement at the fuse box.

• Ideal for fault-finding on car and commercial vehicle electrical circuits. Features large LCD display.

• Very Easy to use, Plugs straight into the vehicles fuse board.

Model	Fuse Type	Resolution	Measuring Range	Accuracy
ACT-20	20A/Max-Blade	10mA	20A/48VDC-10sec.	±(2.0% reading + 2 digits)
ACT-20S	20A/ Mini-Blade	10mA	20A/48VDC-10sec.
ACT-24	30A/Max-Blade	100mA	30A/48VDC-10sec.
ACT-24S	30A/Mini-Blade	100mA	30A/48VDC-10sec.
Maximum measuring voltage: 48V max.
